Product Summary
The MAX1744EUB+ is a step-down DC-DC controller capable of handling up to 36V inputs. It contains an internal feedback network that provides a pin-selectable output voltage of either 3.3V or 5V. The MAX1744EUB+ is available in a space-saving 10-pin μMAX package. The applications of it are Automotive Electronics, Telecom Systems, Wall-Cube-Powered Devices, Industrial Control Systems, Firewire/IEEE 1394. The MAX1744EUB+ use a proprietary current-limited control scheme for excellent light- and full-load efficiency, while their 330kHz (max) switching frequency permits small external components for space-critical applications.
Parametrics
MAX1744EUB+ absolute maximum ratings: (1)N, EXT, SHDN to GND:-0.3V to +38V; (2)VH to GND:-0.3V to +34V; (3)VH, EXT to IN:-7V to +0.3V; (4)CS, OUT to GND:-0.3V to +20V; (5)FB, 3/5, REF to GND:-0.3V to (VL + 0.3V); (6)VL to GND:-0.3V to 6V; (7)Continuous Power Dissipation:444mW; (8)Operating Temperature Range:-40℃ to +85℃; (9)Junction Temperature:+150℃; (10)Storage Temperature Range:-65℃ to +150℃; (11)Lead Temperature (soldering, 10s):+300℃.
Features
MAX1744EUB+ features: (1)High-Voltage Operation (Up to 36V IN); (2)Efficiency > 90%; (3)Output Power Capability Exceeds 50W; (4)10-Pin μMax Package; (5)Low-Dropout Voltage; (6)100% (max) Duty Cycle; (7)90μA Quiescent Current; (8)4μA Shutdown Current; (9)Up to 330kHz Switching Frequency; (10)Output Voltage 5V or 3.3V; (11)Current-Limited Control Scheme.

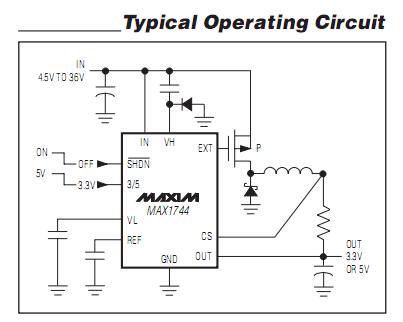

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX1744EUB+ |
Maxim Integrated Products |
DC/DC Switching Controllers Step-Down DC/DC Controller |
Data Sheet |
|
|
||||||||||||
|
MAX1744EUB+T |
Maxim Integrated Products |
DC/DC Switching Controllers Step-Down DC/DC Controller |
Data Sheet |
|
|
||||||||||||
