Product Summary

The TAJD107K010RNJ is a capacitor. It encompasses the five key sizes recognized by major OEMs throughout the world. The V case size has been added to the TAJ range to allow high CVs to be offered. The operational temperature of the TAJD107K010RNJ is -55℃ to +85℃ at rated voltage and up to +125℃ with voltage derating in applications utilizing recommended series resistance.

Parametrics

TAJD107K010RNJ technical specifications: (1)Technical Data: All technical data relate to an ambient temperature of +25℃; (2)Capacitance Range: 0.1μF to 1000μF; (3)Capacitance Tolerance: ±10%; (4)Rated Voltage (VR) ≤+85℃: 10V; (5)Category Voltage (VC) ≤+125℃: 7V; (6)Surge Voltage (VS) ≤+85℃: 13V; (7)Surge Voltage (VS) ≤+125℃: 8V; (8)Temperature Range: -55℃ to +125℃.

Diagrams

TAJD107K010RNJ package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

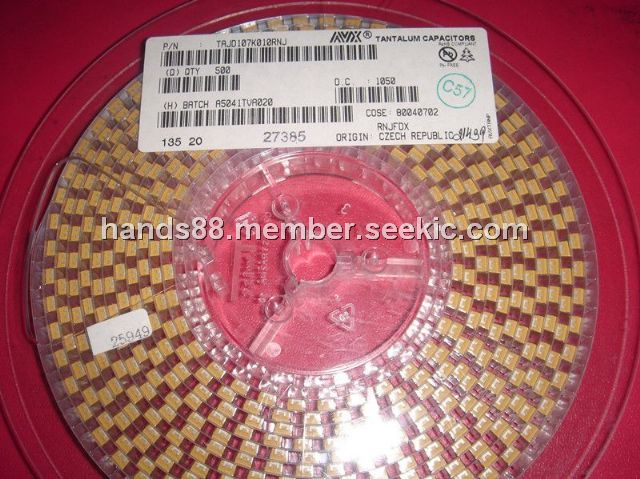

TAJD107K010RNJ
TAJD107K010RNJ
AVX
Tantalum Capacitors - Solid SMD 10volts 100uF 10%
Data Sheet
0-1: $0.91
1-100: $0.61
100-200: $0.50
200-500: $0.35
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TAJD106J035RNJ
TAJD106J035RNJ
AVX
Tantalum Capacitors - Solid SMD 35volts 10uF 5%
Data Sheet
0-1: $1.61
1-100: $1.41
100-200: $1.31
200-500: $0.70
TAJD106K025H
TAJD106K025H

CAP TANT 10UF 25V 10% 2917
Data Sheet
0-500: $0.61
TAJD106K025HNJ
TAJD106K025HNJ
AVX
Tantalum Capacitors - Solid SMD 25volts 10uF 10%
Data Sheet
0-1: $2.01
1-100: $1.20
100-500: $0.77
500-1000: $0.67
TAJD106K025RNJ
TAJD106K025RNJ
AVX
Tantalum Capacitors - Solid SMD 25volts 10uF 10%
Data Sheet
0-1: $0.61
1-50: $0.48
50-100: $0.33
100-500: $0.20
TAJD106K025SNJ
TAJD106K025SNJ
AVX
Tantalum Capacitors - Solid SMD 25volts 10uF 10%
Data Sheet
0-5000: $0.15
5000-10000: $0.14
10000-25000: $0.14
TAJD106K035H
TAJD106K035H
AVX Corporation
CAPACITOR TANT 10UF 35V 10% SMD
Data Sheet
1-500: $0.67
