Product Summary

The AT29C1024-70JI is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C1024-70JI offers access times to 70 ns with power dissipation of just 330 mW. When the device is deselected, the CMOS standby current is less than 200 μA. The AT29C1024-70JI endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C1024-70JI absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: 0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground:-0.6V to +13.5V.

Features

AT29C1024-70JI features: (1)Fast Read Access Time - 70 ns; (2)5-Volt-Only Reprogramming; (3)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 512 Sectors (128 words/sector), Internal Address and Data Latches for 128 Words; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Fast Sector Program Cycle Time - 10 ms; (7)DATA Polling for End of Program Detection ; (8)Low Power Dissipation: 60 mA Active Current, 200 μA CMOS Standby Current; (9)Typical Endurance > 10,000 Cycles; (10)Single 5V ±10% Supply; (11)CMOS and TTL Compatible Inputs and Outputs; (12)Commercial and Industrial Temperature Ranges.

Diagrams

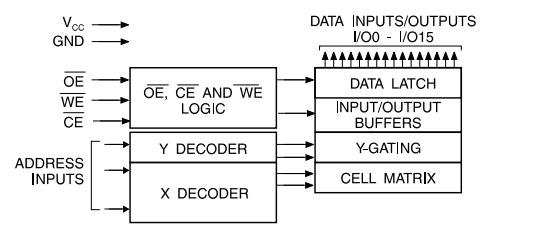

AT29C1024-70JI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

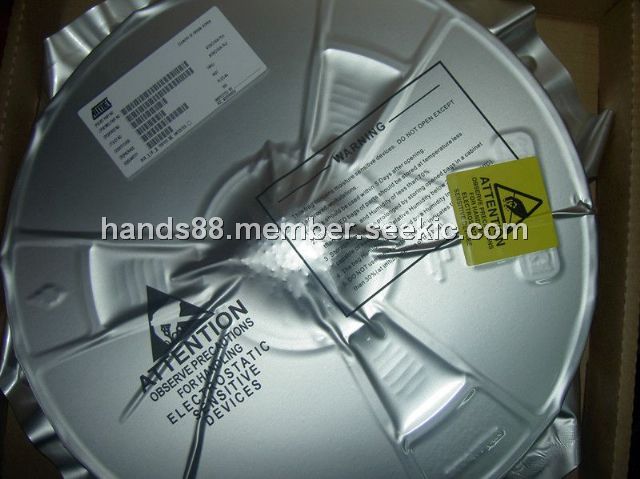

AT29C1024-70JI
AT29C1024-70JI

Atmel

Flash 1M (64kx16)

Data Sheet

Negotiable
