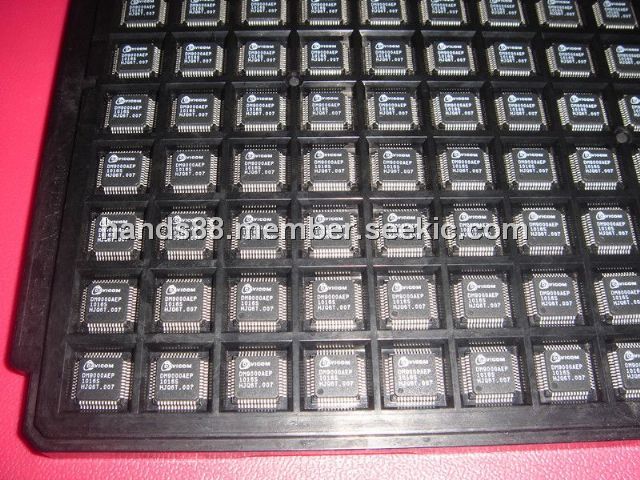

DM9000AEP

48-pin LQFP, Integrated 10/100M transceiver, Integrated 16K Byte SRAM, Ethernet Controller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~4.00

PartNumber:: DM9000AEP

Brand:: Davicom Semiconductor,Inc. - Davicom | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ivy Lin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:DM9000AEP
US $3.00 - 4.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DM9000AEP is a fully integrated and cost-effective low pin count single chip Fast Ethernet controller with a general processor interface, a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance process that support 3.3V with 5V IO tolerance. The DM9000AEP supports 8-bit and 16-bit data interfaces to internal memory accesses for various processors. The PHY of the DM9000AEP can interface to the UTP3, 4, 5 in 10Base-T and UTP5 in 100Base-TX with HP Auto-MDIX. It is fully compliant with the IEEE 802.3u Spec.

Parametrics

DM9000AEP absolute maximum ratings: (1)Supply Voltage:-0.3V to 3.6V; (2)DC Input Voltage (VIN):-0.5V to 5.5V; (3)DC Output Voltage(VOUT):-0.3V to 3.6V; (4)Storage Temperature range:-65℃ to +150℃; (5)Case Temperature:0℃ to 85℃; (6)Ambient Temperature:0℃ to +70℃; (7)Lead Temperature(TL,soldering,10 sec.):+260℃.

Features

DM9000AEP features: (1)48-pin LQFP; (2)Supports processor interface: byte/word of I/O command to internal memory data operation ; (3)Integrated 10/100M transceiver with HP Auto-MDIX ; (4)Supports back pressure mode for half-duplex mode flow control ; (5)IEEE802.3x flow control for full-duplex mode ; (6)Supports wakeup frame, link status change and magic packet events for remote wake up ; (7)Support 100M Fiber interface. ; (8)Integrated 16K Byte SRAM ; (9)Build in 3.3V to 2.5V regulator ; (10)Supports early Transmit ; (11)Supports IP/TCP/UDP checksum generation and checking ; (12)Supports automatically load vendor ID and product ID from EEPROM Optional EEPROM configuration ; (13)transformers for additional power reduction.Compatible with 3.3V and 5.0V tolerant I/O.
