Product Summary

The MAX3100EEE+ is an universal asynchronous receiver transmitter (UART). It is the first UART specifically optimized for small microcontroller-based systems. The MAX3100EEE+ includes a crystal oscillator and a baudrate generator with software-programmable divider ratios for all common baud rates from 300 baud to 230k baud. A software- or hardware-invoked shutdown lowers quiescent current to 10μA, while allowing the MAX3100EEE+ to detect receiver activity. An 8-word-deep first-in/first-out (FIFO) buffer minimizes processor overhead. The applications of it are Hand-Held Instruments, Intelligent Instrumentation, UART in SPI Systems, Small Networks in HVAC or Building Control, Isolated RS-232/RS-485: Directly Drives Opto-Couplers, Low-Cost IR Data Links for Computers/Peripherals

Parametrics

MAX3100EEE+ absolute maximum ratings: (1)VCC to GND:+6V; (2)Input Voltage to GND:-0.3V to (VCC + 0.3V); (3)Output Voltage to GND:-0.3V to (VCC + 0.3V); (4)IRQ:-0.3V to 6V; (5)TX, RTS Output Current:100mA; (6)X2, DOUT, IRQ Short-Circuit Duration:Indefinite; (7)Continuous Power Dissipation:667mW; (8)Operating Temperature Ranges:-40℃ to +85℃; (9)Storage Temperature Range:-65℃ to +160℃; (10)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX3100EEE+ features: (1)16-Pin QSOP Package (8-pin SO footprint):Smallest UART Available; (2)IrDA SIR Timing Compatible; (3)8-Word FIFO Minimizes Processor Overhead at High Data Rates; (4)Up to 230k Baud with a 3.6864MHz Crystal; (5)9-Bit Address-Recognition Interrupt; (6)Receive Activity Interrupt in Shutdown; (7)SPI/Microwire-Compatible μC Interface; (8)Lowest Power: 150μA Operating Current at 3.3V, 10μA in Shutdown with Receive Interrupt; (9)+2.7V to +5.5V Supply Voltage in Operating Mode; (10)Schmitt-Trigger Inputs for Opto-Couplers ; (11)TX and RTS Outputs Sink 25mA for Opto-Couplers.

Diagrams

MAX3100EEE+ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

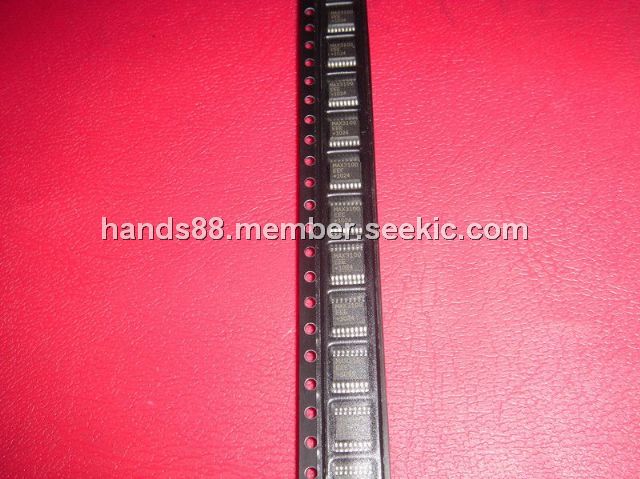

MAX3100EEE+
MAX3100EEE+
Maxim Integrated Products
UART Interface IC SPI/uWire Compatible
Data Sheet
0-1: $6.94
1-25: $4.66
25-50: $3.37
50-100: $3.33
MAX3100EEE+T
MAX3100EEE+T
Maxim Integrated Products
UART Interface IC SPI/uWire Compatible
Data Sheet
0-1: $6.33
1-25: $4.24
25-50: $3.41
50-250: $3.35
