Product Summary

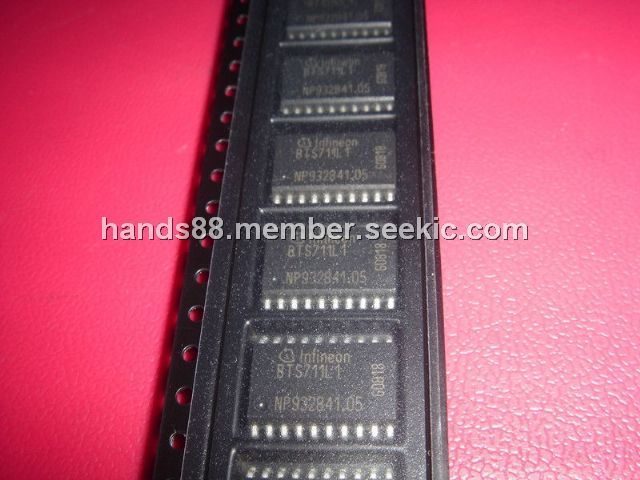

The BTS711L1 is a Smart Four Channel Highside Power Switch. The applications of the BTS711L1 are μC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, All types of resistive, inductive and capacitive loads, Replaces electromechanical relays and discrete circuits.
Parametrics
BTS711L1 absolute maximum ratings: (1)Supply voltage:43 V; (2)Supply voltage for full short circuit protection:34 V; (3)Load current:self-limited; (4)Load dump protection:60V; (5)Operating temperature range:-40℃ to +150℃; (6)Storage temperature range:-55℃ to +150℃; (7)Power dissipation: Ta = 25℃:3.6W, Ta = 85℃: 1.9W; (8)Electrostatic discharge capability (ESD)(Human Body Model):1.0 kV.
Features
BTS711L1 features: (1)Overload protection ; (2)Current limitation ; (3)Short-circuit protection ; (4)Thermal shutdown ; (5)Overvoltage protection(including load dump) ; (6)Fast demagnetization of inductive loads ; (7)Reverse battery protection1) ; (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis ; (9)Open drain diagnostic output ; (10)Open load detection in ON-state ; (11)CMOS compatible input ; (12)Loss of ground and loss of Vbb protection; (13)Electrostatic discharge (ESD) protection.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BTS711L1 |
![]() Infineon Technologies |
![]() Power Switch ICs - Power Distribution SMART 4-CH HI-SIDE PWR SWITCH |
![]() Data Sheet |
![]()
|
|
||||||||||||
