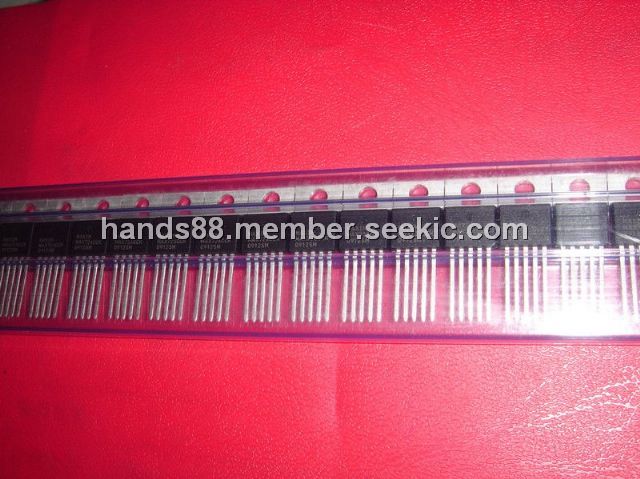

Product Summary
The MAX726CCK is a monolithic, bipolar, pulse-width modulation (PWM), switch-mode DC-DC regulator optimized for step-down applications. The MAX726CCK has excellent dynamic and transient response characteristics, while featuring cycle-by-cycle current limiting to protect against overcurrent faults and short-circuit output faults. The MAX726CCK also has a wide 8V to 40V input range in the buck step-down configuration. In inverting and boost configurations, the input can be as low as 5V. The applications of the MAX726CCK are Distributed Power from High-Voltage Buses, High-Current, High-Voltage Step-Down Applications, High-Current Inverter, Negative Boost Converter, Multiple-Output Buck Converter, Isolated DC-DC Conversion.
Parametrics
MAX726CCK absolute maximum ratings: (1)Input Voltage:45V; (2)Switch Voltage with Respect to Input Voltage:50V; (3)Switch Voltage with Respect to Ground Pin (VSW Negative):35V; (4)Feedback Pin Voltage:-0.3V, +10V; (5)Operating Temperature Ranges:0℃ to +70℃; (6)Junction Temperature Ranges:0℃ to +125℃; (7)Storage Temperature Range:-65℃ to +160℃; (8)Lead Temperature (soldering, 10sec):+300℃.
Features
MAX726CCK features: (1)Input Range: Up to 40V; (2)2A On-Chip Power Switch; (3)Adjustable Output: 2.5V to 35V; (4)100kHz Switching Frequency; (5)Excellent Dynamic Characteristics; (6)Few External Components; (7)8.5mA Quiescent Current; (8)TO-220 Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX726CCK |
Maxim Integrated Products |
DC/DC Switching Controllers |
Data Sheet |
Negotiable |
|
||||
|
MAX726CCK-SL |
Maxim Integrated Products |
DC/DC Switching Controllers |
Data Sheet |
Negotiable |
|
||||
