Product Summary

The MAX762ESA is a Step-Up DC-DC Converter. It provides high efficiency over a wide range of load currents, delivering up to 150mA. A unique, current-limited pulse-frequency-modulated (PFM) control scheme gives the MAX762ESA the benefits of pulse-width-modulated (PWM) converters (high efficiency with heavy loads), while using less than 110μA of supply current (vs. 2mA to 10mA for PWM converters). The result is high efficiency over a wide range of loads. The applications of the MAX762ESA are Flash Memory Programming, PCMCIA Cards, Battery-Powered Applications, High-Efficiency DC-DC Converters.

Parametrics

MAX762ESA absolute maximum ratings: (1)Supply Voltage V+ to GND:-0.3V to 17V; (2)REF, LBO, LBI, SHDN, FB:-0.3V to (V+ + 0.3V); (3)LX:-0.3V to 17V; (4)LX Peak Current:1.5A; (5)LBO Current:5mA; (6)Continuous Power Dissipation:471mW; (7)Operating Temperature Ranges::-40℃ to +85℃; (8)Junction Temperatures::+150℃; (9)Storage Temperature Range:-65℃ to +160℃; (10)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX762ESA features: (1)High Efficiency for a Wide Range of Load Currents; (2)12V/150mA Flash Memory Programming Supply; (3)110μA Max Supply Current; (4)5μA Max Shutdown Supply Current; (5)2V to 16.5V Input Voltage Range; (6)12V (MAX761), 15V (MAX762) or Adjustable Output; (7)Current-Limited PFM Control Scheme; (8)300kHz Switching Frequency; (9)Internal, 1A, N-Channel Power FET; (10)LBI/LBO Low-Battery Comparator.

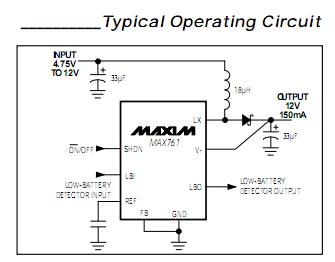

Diagrams

MAX762ESA pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

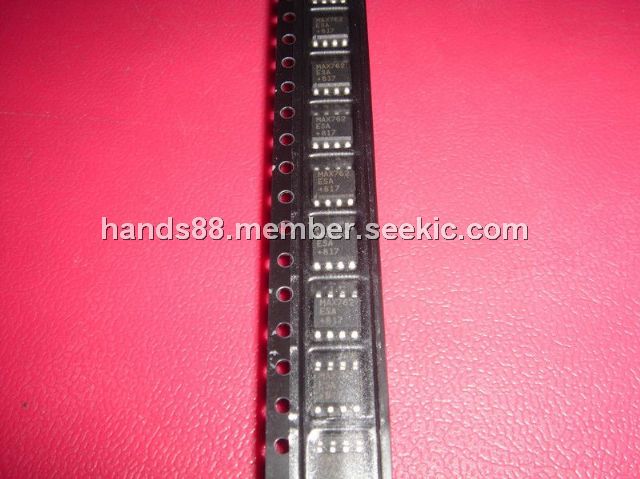

MAX762ESA
MAX762ESA
Maxim Integrated Products
DC/DC Switching Converters
Data Sheet
Negotiable
MAX762ESA+
MAX762ESA+
Maxim Integrated Products
DC/DC Switching Converters Integrated Circuits (ICs)
Data Sheet
Negotiable
MAX762ESA+T
MAX762ESA+T
Maxim Integrated Products
DC/DC Switching Converters Integrated Circuits (ICs)
Data Sheet
Negotiable
MAX762ESA-T
MAX762ESA-T
Maxim Integrated Products
DC/DC Switching Converters
Data Sheet
Negotiable
