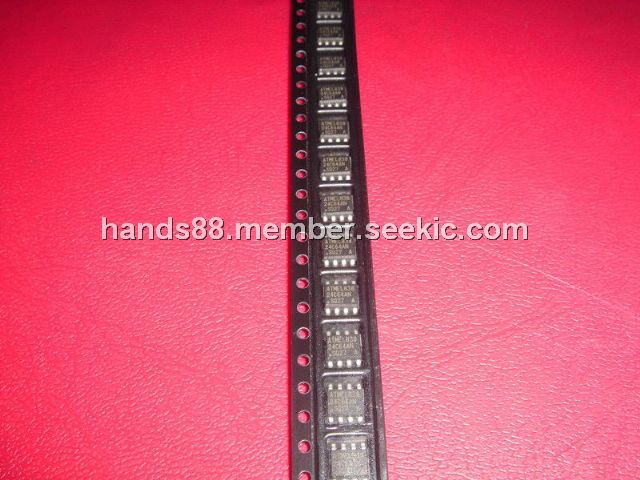

AT24C64AN-10SQ-2.7

Standard-Voltage Operation, 32-Byte Page Write Mode, 8-SOIC, 2-Wire Serial EEPROM

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: AT24C64AN-10SQ-2.7

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ivy Lin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:AT24C64AN-10SQ-2.7
US $1.50 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT24C64AN-10SQ-2.7 is a 2-Wire Serial EEPROM. It provides 32,768/65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common 2-wire bus. The AT24C64AN-10SQ-2.7 is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C64AN-10SQ-2.7 is available in space saving 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead MAP and 8-lead TSSOP packages and is accessed via a 2-wire serial interface.

Parametrics

AT24C64AN-10SQ-2.7 absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to +7.0V; (4)Maximum Operating Voltage:6.25V; (5)DC Output Current:5.0 mA.

Features

AT24C64AN-10SQ-2.7 features: (1)Low-Voltage and Standard-Voltage Operation: 2.7 (VCC = 2.7V to 5.5V), 1.8 (VCC = 1.8V to 5.5V); (2)Low-Power Devices (ISB = 6 μA @ 5.5V) Available; (3)Internally Organized 4096 x 8, 8192 x 8; (4)2-Wire Serial Interface; (5)Schmitt Trigger, Filtered Inputs for Noise Suppression; (6)Bidirectional Data Transfer Protocol ; (7)100 kHz (1.8V) and 400 kHz (2.5V) Clock Rate for AT24C32A; (8)400 kHz (1.8V) Clock Rate for AT24C64A; (9)Write Protect Pin for Hardware Data Protection; (10)32-Byte Page Write Mode (Partial Page Writes Allowed); (11)Self-Timed Write Cycle (5 ms Max); (12)High Reliability: Endurance: 1 Million Write Cycles, Data Retention: 100 Years; (13)Automotive Grade, Extended Temperature and Lead-free/Halogen-free Devices Available; (14)8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead MAP and 8-lead TSSOP Packages.
