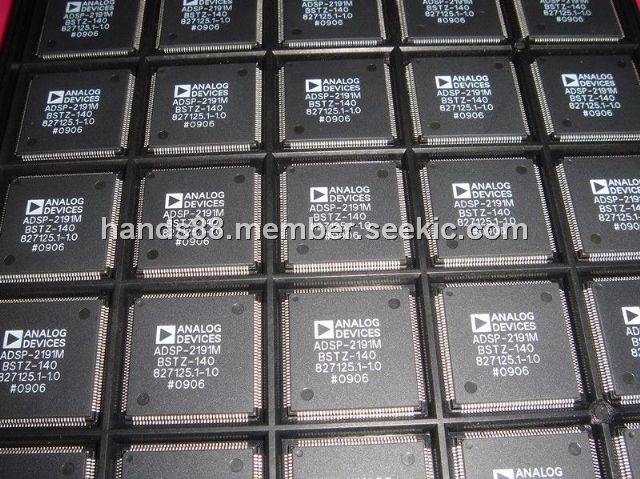

ADSP-2191MBSTZ-140

DSP Microcomputer, 144LQFP, 6.25 ns Instruction Cycle Time, Multifunction Instructions

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.00~25.00

PartNumber:: ADSP-2191MBSTZ-140

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ivy Lin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:ADSP-2191MBSTZ-140
US $20.00 - 25.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADSP-2191MBSTZ-140 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The ADSP-2191MBSTZ-140 integrates 64K words of on-chip memory configured as 32K words (24-bit) of program RAM, and 32K words (16-bit) of data RAM. Power-down circuitry is also provided to reduce power consumption. The ADSP-2191MBSTZ-140 is available in 144-lead LQFP and 144-ball mini-BGA packages. Fabricated in a high-speed, low-power, CMOS process, the ADSP-2191MBSTZ-140 operates with a 6.25 ns instruction cycle time (160 MIPS). All instructions, except single-word instructions, execute in one processor.

Parametrics

ADSP-2191MBSTZ-140 absolute maximum ratings: (1)VDDINT Internal (Core) Supply Voltage:–0.3 V to 3.0 V; (2)VDDEXT External (I/O) Supply Voltage:–0.3 V to 4.6 V; (3)VIL–VIH Input Voltage:–0.5 V to VDDEXT+0.5 V; (4)VOL–VOH Output Voltage Swing:–0.5 V to VDDEXT+0.5 V; (5)TSTOREStorage Temperature Range:–65℃ to 150℃; (6)TLEADLead Temperature of ST-144 (5 seconds):185℃.

Features

ADSP-2191MBSTZ-140 features: (1)6.25 ns Instruction Cycle Time, for up to 160 MIPS Sustained Performance; (2)ADSP-218x Family Code Compatible with the Same, Easy to Use Algebraic Syntax; (3)Single-Cycle Instruction Execution; (4)Single-Cycle Context Switch between Two Sets of Computation and Memory Instructions; (5)Instruction Cache Allows Dual Operand Fetches in Every Instruction Cycle; (6)Multifunction Instructions; (7)Pipelined Architecture Supports Efficient Code Execution ; (8)Architectural Enhancements for Compiled C and C++ Code Efficiency; (9)Architectural Enhancements beyond ADSP-218x Family are Supported with Instruction Set Extensions for Added Registers, and Peripherals; (10)Flexible Power Management with User-Selectable Power-Down and Idle Modes.
