Product Summary

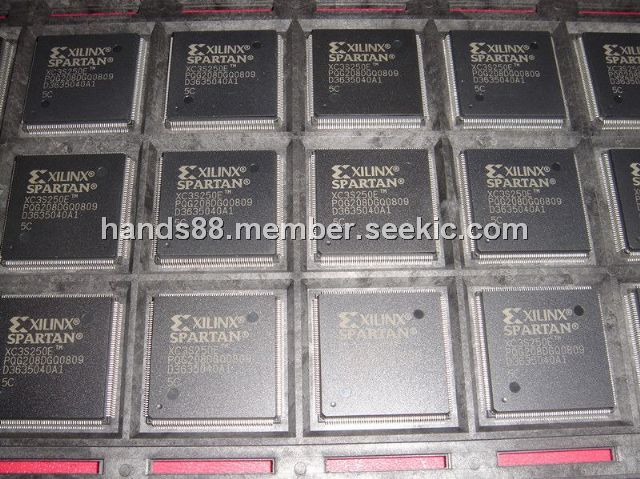

The XC3S250E-5PQG208C belongs to Field-Programmable Gate Arrays (FPGAs)which is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The five-member family offers densities ranging from 100,000 to 1.6 million system gates. The XC3S250E-5PQG208C builds on the success of the earlier Spartan-3 family by increasing the amount of logic per I/O, significantly reducing the cost per logic cell.
Parametrics
XC3S250E-5PQG208C absolute maxing ratings: (1)VCCINT Internal supply voltage: min=-0.5V, max=1.32V; (2)VCCAUX Auxiliary supply voltage: min=-0.5V, max=3.00V; (3)VCCO Output driver supply voltage: min=0.5V, max=3.75V; (4)VREF Input reference voltage: min=-0.5V, max=VCCO+0.5V; (5)On the conditions of Driver in a high-impedance state, VIN Voltage applied to all User I/O pins and Dual-Purpose pins: min=-0.5, max=VCCO+0.5V; Voltage applied to all Dedicated pins: min=-0.5V, max=VCCAUX+0.5V; (6)TJ Junction temperature: max=125℃; (7)TSTG Storage temperature: min=-65℃, max=150℃.
Features
XC3S250E-5PQG208C features: (1)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications; (2)Proven advanced 90-nanometer process technology; (3)Multi-voltage, multi-standard SelectIO?interface pins: Up to 376 I/O pins or 156 differential signal pairs; LVCMOS, LVTTL, HSTL, and SSTL single-ended signal standards; True LVDS, RSDS, mini-LVDS differential I/O; 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V signaling; Enhanced Double Data Rate (DDR) support.

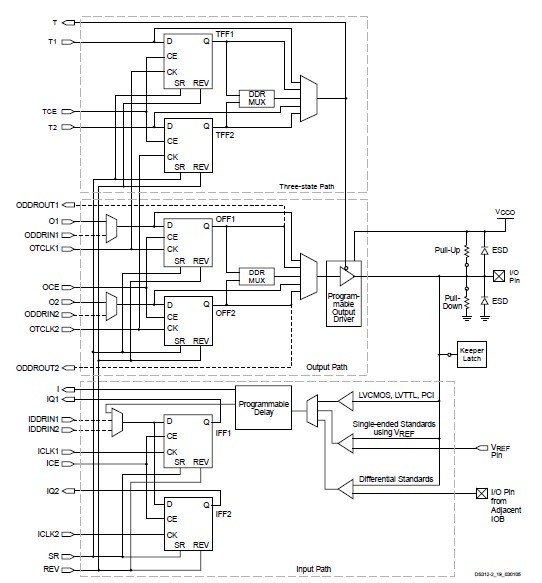

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC3S250E-5PQG208C |
|
IC FPGA SPARTAN-3E 250K 208-PQFP |
Data Sheet |
|
|
||||||||||
