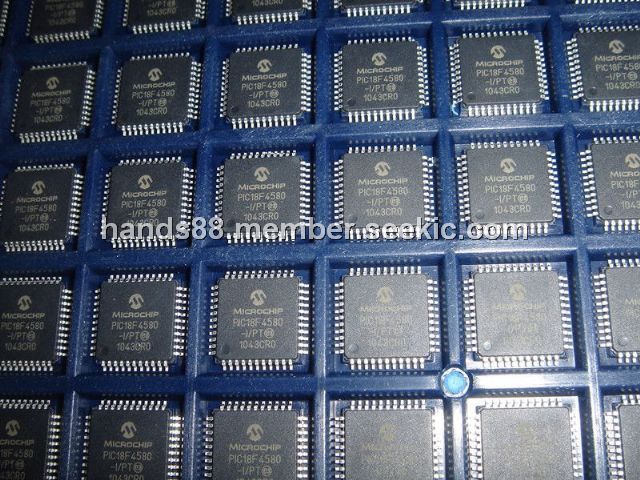

PIC18F4580-I-PT

28/40/44-pin enhanced flash microcontroller, 44TQFP, -0.3V to +7.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.50~4.50

PartNumber:: PIC18F4580-I-PT

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ivy Lin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:PIC18F4580-I-PT
US $3.50 - 4.50
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

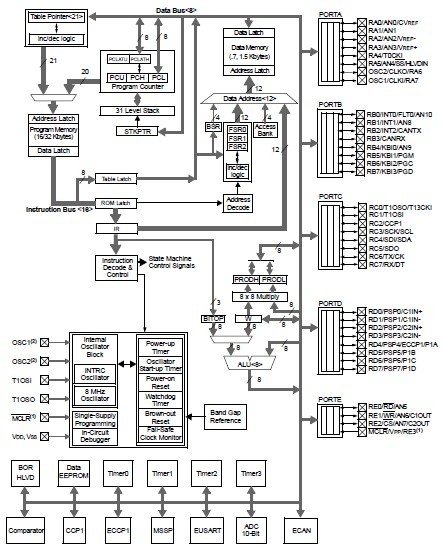

The PIC18F4580-I-PT is a 28/40/44-pin enhanced flash microcontroller with ECAN technology, 10-bit A/D and nanowatt technology.

Parametrics

PIC18F4580-I-PT absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Total power dissipation: 1.0W; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200 mA; (14)Maximum current sourced by all ports: 200 mA.

Features

PIC18F4580-I-PT features: (1)C Compiler Optimized Architecture with Optional Extended Instruction Set; (2)100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical; (3)1,000,000 Erase/Write Cycle Data EEPROM Memory Typical; (4)Flash/Data EEPROM Retention: > 40 Years; (5)Self-Programmable under Software Control; (6)Priority Levels for Interrupts; (7)8 × 8 Single-Cycle Hardware Multiplier; (8)Extended Watchdog Timer (WDT): Programmable period from 41 ms to 131s.
